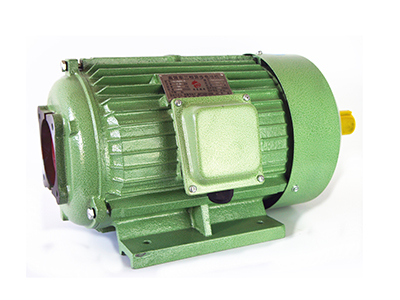

YE series of in-line pump motor

Oil pump motor is work for hydraulic parts factory production,hydraulic system as driving power.With axial plunger pump, gear pump, vane pump form a complete set of oil pump power plant.
In structure compared with the traditional motor oil pump device, eliminating the public plate, coupling, pump bearings, axial length shortens about a quarter.Due to the pump and motor using direct connection, so as to make the operation more smoothly, lower noise, and the oil pump can be individually replaced.
This series motor using F insulation level, IP54 protection grade for ICO141 cooling way, using the environment temperature changes over time, but no more than 40 ℃ (except special), no more than 1000 m altitude, stator winding resistance method was used to measure the temperature of less than 85 ℃.
Motor based on continuously (S1) continuous norm, rated voltage 380 v, rated frequency 50 hz.More than 3 kw for delta connection, also can design according to user needs special voltage motor, such as: 50 hz, 220/380 v, 415 v, 60 hz.220/380 220/380 v, etc.And the user is required by the moistureproof, mouldproof, wet with special circumstances such as the use of the motor.
